Inspection Equipment
We feel we have the highest quality, most accurate inspection equipment in the industry.
Almost all our equipment is made by ZEISS.
![Zeiss Zeiss](https://www.tqscorp.com/wp-content/uploads/2019/02/Zeiss-Logo.png)
![Zeiss Contura Zeiss Contura](/wp-content/uploads/2010/02/Contura-1.jpg)

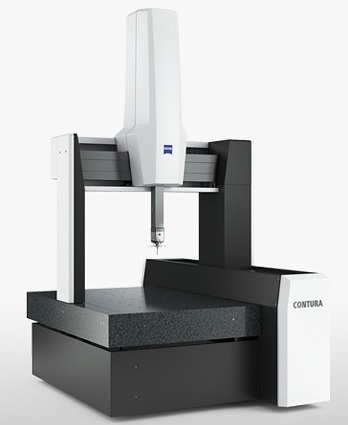

ZEISS CONTURA
- 40” x 48” Measuring Range
- Articulating head every 2.5 degrees
- Continual Scanning Sensor
![Zeiss DuraMax Zeiss DuraMax](/wp-content/uploads/2010/02/duramax_lg-1.bmp)

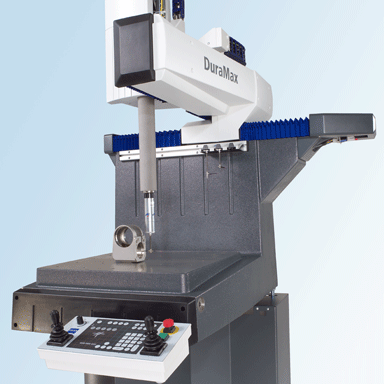

ZEISS DuraMax
- 20” x 20” Measuring Range
- Continual Scanning Sensor
- Automatic Probe Changer
![Zeiss O-Inspect Zeiss O-Inspect](/wp-content/uploads/2010/02/O-INSPECT-322-1.jpg)

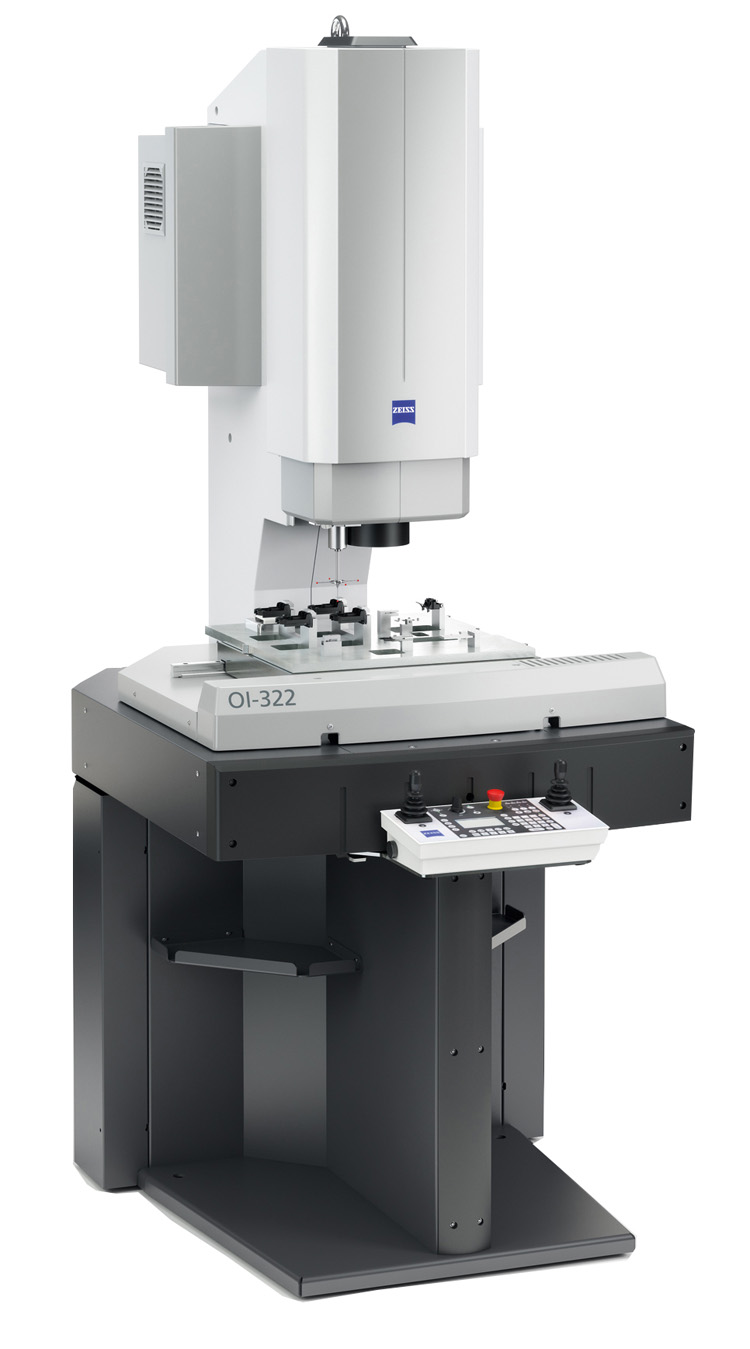

ZEISS O-INSPECT
- 12” x 8” x 8” Measuring Range
- Full 3 Axis CMM with Camera
- Continual Scanning Sensor
- Automatic Probe Changer
- ZEISS Optics
- Best of both worlds
![Ram Optical Sprint Ram Optical Sprint](/wp-content/uploads/2010/02/SprintMVP300_High-Res.png)

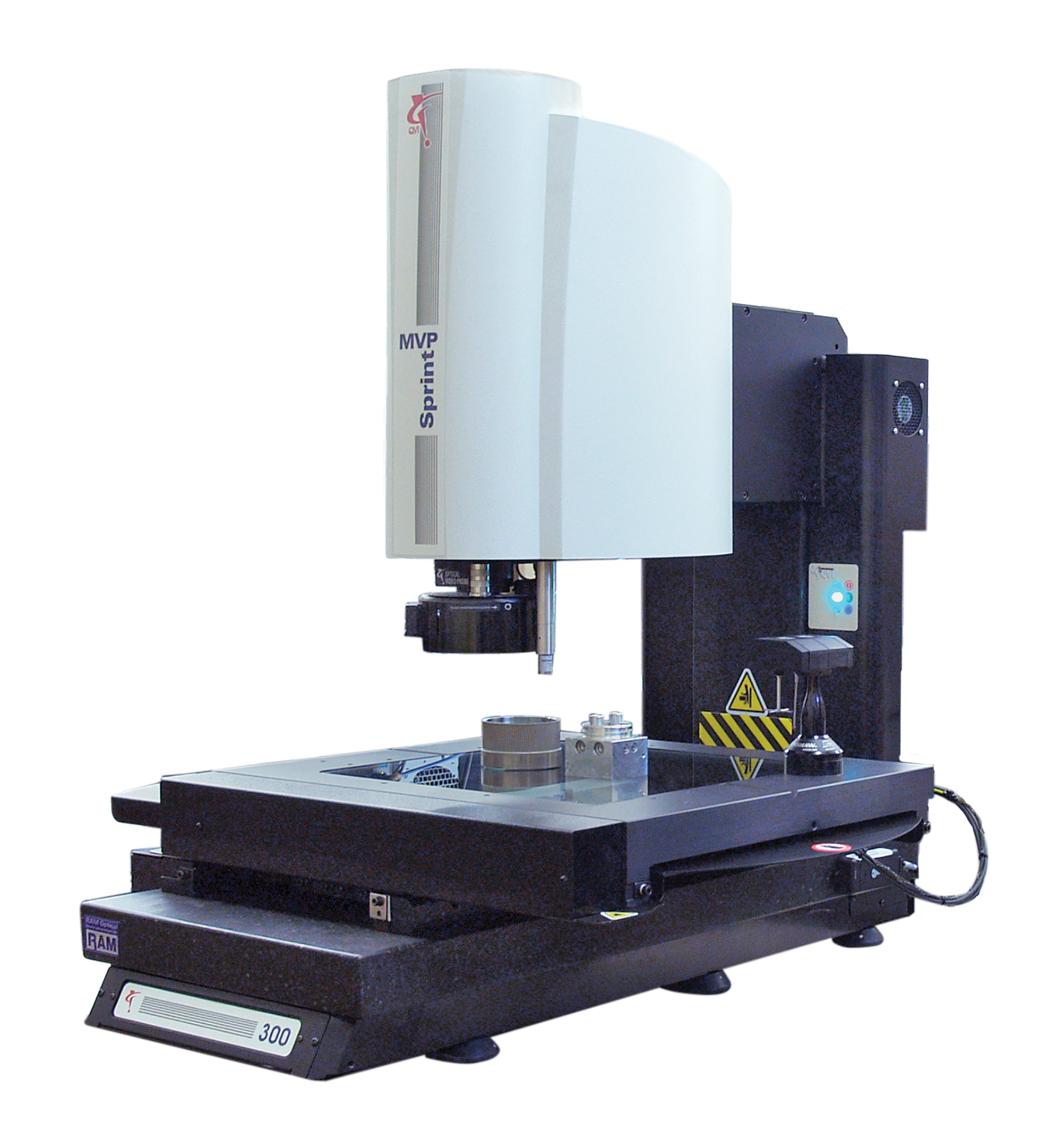

Ram Optical Sprint
- 12” x 12” x 6” Measuring Range
- Non Contact
- Touch Probe
- Manual or Motorized Measurement
![Zeiss Comet System Zeiss Comet System](/wp-content/uploads/2010/02/Comet3.jpg)
ZEISS COMET
- Designed to gather data clouds of parts very quickly
- Used for Reverse Engineering as well as Inspection of parts.
- Measures very small parts to very large parts
![Guitar Pic Guitar Pic](/wp-content/uploads/2010/02/Guitar-Pic.jpg)

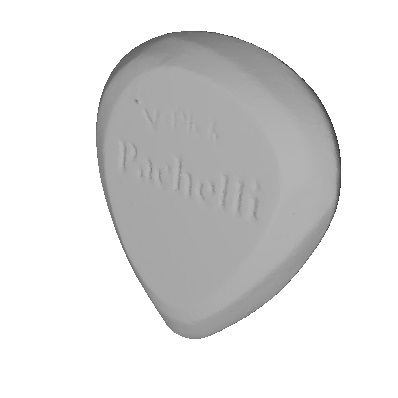

Sample of a measurement of a guitar pic. Notice the fine detail It took about 10 minutes to capture this data.
![Zeiss Metrotom CT Machine Zeiss Metrotom CT Machine](/wp-content/uploads/2010/02/Metrotom.jpg)
ZEISS METROTOM
- Measures the inside and outside of a part with X-Ray Technology.
- Used for Reverse Engineering as well as Inspection of parts.
- Can measure many parts in one scan.
![Typical Results Typical Results](/wp-content/uploads/2010/02/Metrotom-app.jpg)
Typical Results
Measure internal feature that cannot be measured by any other method.
![Mark-10 Tensile Testing Mark-10 Tensile Testing](/wp-content/uploads/2010/02/ESM303.jpg)

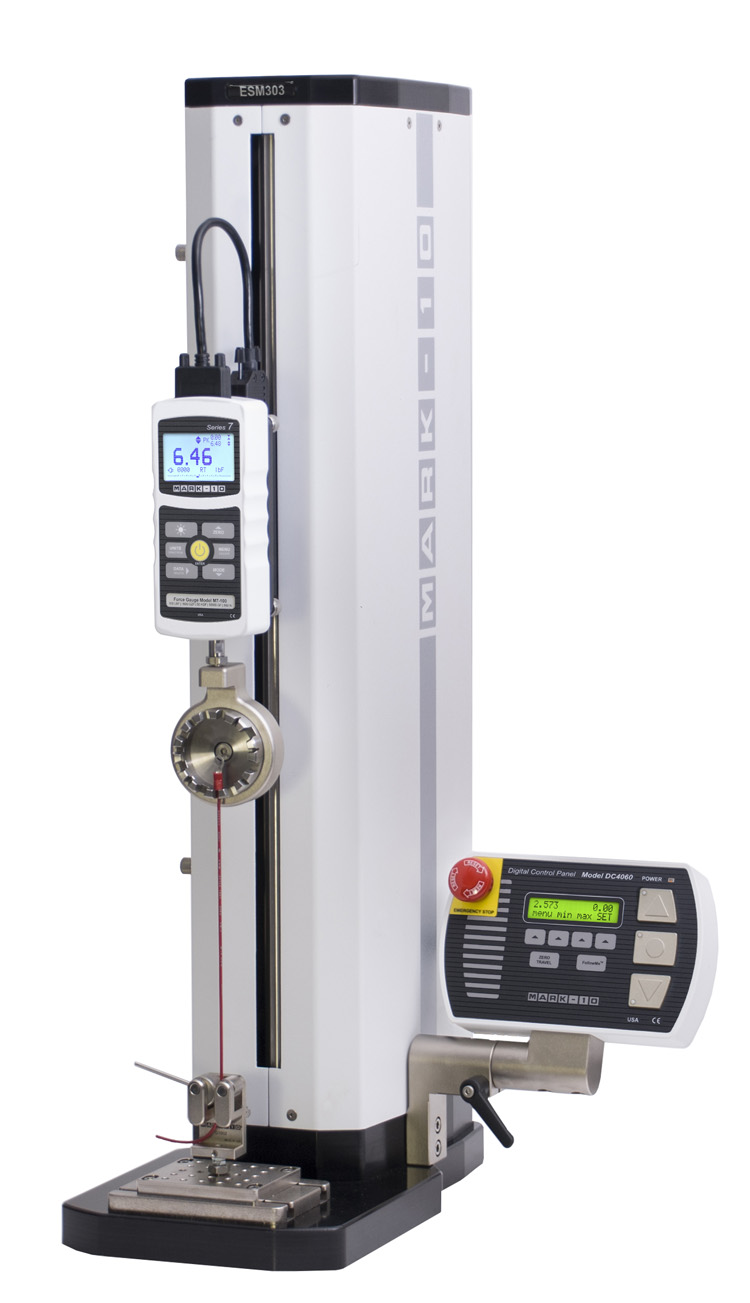

Mark-10 Tensile Testing
- 300 lb capabilites
- Push and Pull
- Software for reports and data collection
![Zeiss Rondcom Zeiss Rondcom](/wp-content/uploads/2010/02/Rondcom-41c.jpg)

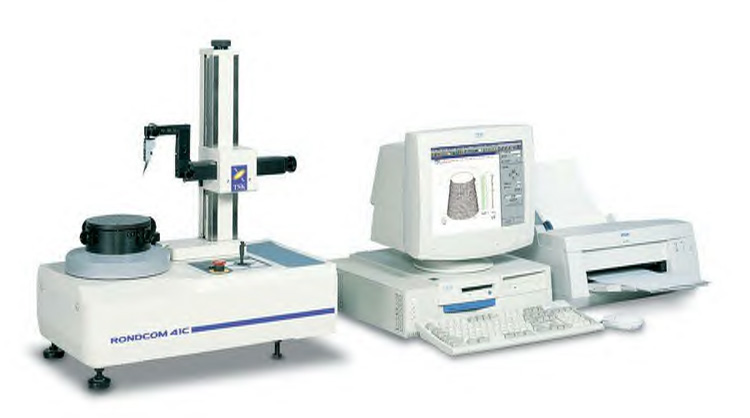

ZEISS RONDCOM
- Roundness
- Runout
- Cylindricity
- Plus a lot more
![Zeiss Surfcom Zeiss Surfcom](/wp-content/uploads/2010/02/Surfcom-130A-1.jpg)

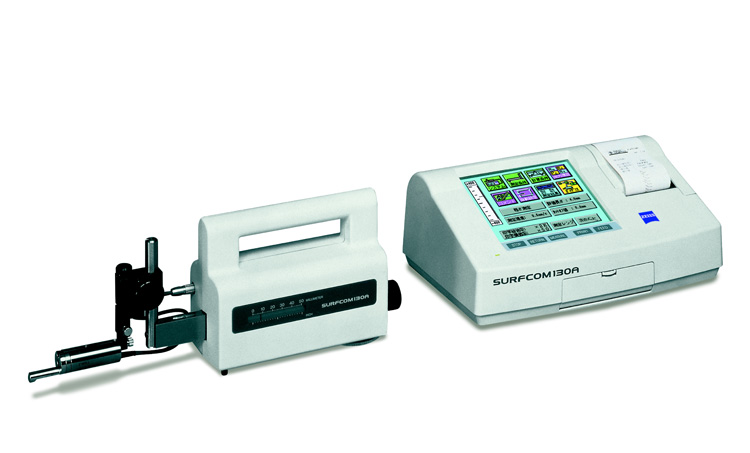

ZEISS SURFCOM
- Surface Finish
- Skidless System
- Very small features
- Small bores
- Deep Grooves
